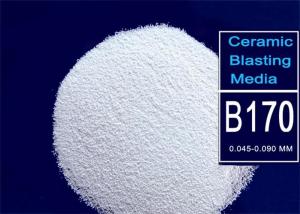

B170 size 0.045-0.090mm Wear Resistance Ceramic Beads Sandblasting Media

  • 1
  • 2

Brand Name : Zhengtong

Model Number : B20-B505

Place of Origin : Zhengzhou

MOQ : 100KGS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 200mts per month

Delivery Time : 3-5 days after order confirmed

Packaging Details : 2*12.5kg barrel+ carton box + pallet or 25kg barrel+pallet

Commodity : Ceramic Blasting Beads

Product Name : Ceramic Blasting Media

Usage : Surface finish for 3C products

Bulk Density : 2.3 g/cm3

True Gravity : 3.85 g/cm3

Vicker Hardness : 700HV

Main Material : 60-66% ZrO2

Shape : Solid Round Ball

Certification : N/A

Contact Now

Ceramic beads sandblasting media no dust and easy to clean VS Glass Beads

DESCRIPTION
Ceramic beads is an excellent sandblasting media with main chemical content is ZrO2 60% Min.,with good wear resistance and impact resistance.
It is also featured with more fine sizes like B205 (0.000-0.063 mm), B400 (0.030-0.063 mm), B505 (0.010-0.030 mm)
The satin finish of the processing metal work pieces surface will be with lower roughness and higher finish.

Ceramic beads are used in blasting systems for deburring at the surface finishing of components consisting of stainless steel, titanium alloy and aluminum.

Technical Data
ComponentsContentCAS No.EC No.
ZrO2 (Zirconium dioxide)60-68%1314-23-4215-227-2
SiO2 (Silicon dioxide)25-3060676-86-0262-373-8
Al2O3 (Aluminum oxide )7-13%1344-28-1215-691-6
Manufacturing MethodMelting in above 2000℃ furnace
True Density3.85 g/cm3
Bulk Density2.3g/cm3
Vicker Hardness700HV
Sizes for Sand Blasting
Bead SizeSize rangeBead SizeSize range
B200.60-0.85 mmB1200.063-0.125 mm
B300.425-0.60 mmB1250.000-0.125 mm
B400.24-0.425 mmB1700.045-0.090 mm
B600.125-0.25 mmB2050.000-0.063 mm
B800.18-0.25 mmB4000.030-0.063 mm
B1000.125-0.18 mmB5050.000-0.030 mm
Sizes for Shot Peening
Z8500.85-1.18 mmZ2100.21-0.30 mm
Z6000.6-0.85 mmZ1500.15-0.21 mm
Z4250.425-0.60 mmZ1000.10-0.15 mm
Z3000.30-0.425 mm　　



FEATURES

  • Features--Ceramic bead VS Glass Beads

    Disadvantages of Glass beadsAdvantage of Ceramic beads
    • Easy to fragile, uneven finish effect and with dust

    Good toughness, not easy to be broken,
    uniform finish effect. Service Life time is 8-20 times longer than glass beads

    • Surface turn white, unnatural metallic luster
    		Natural metallic luster
    • A high rate of dirt adhesion, contamination of the surface
    		No dust, no metal contamination
    • Difficulties to clean and rinse,
    		Easy to clean
    • Corrosion can occur easily
    		No corrosion
    • 1-2 time
    		Multiple recycle use more than 20 times

APPLICATION

  • · Sandblast cleaning for metal tools
  • · Descaling and deburring
  • · Alu alloy and Stainless steel surface satin finishing
  • · Painting/ coating stripping and pre treatment before coating

The ceramic beads is applicable to use in the mobile open sandblasting machine.


CONTACT US

Other main sandblasting abrasive available

01. Ceramic Beads
02. Glass Beads
03. Steel Shot
04. Brown fused alumina
05. White fused alumina
06. Black fused alumina
B170 size 0.045-0.090mm Wear Resistance Ceramic Beads Sandblasting Media

We can provide MSDS, COA, CERTIFICATE OF ORIGIN, etc.
Contact us to get more details about ceramic beads and other sandblasting media, you can get very fast response and professional service.
